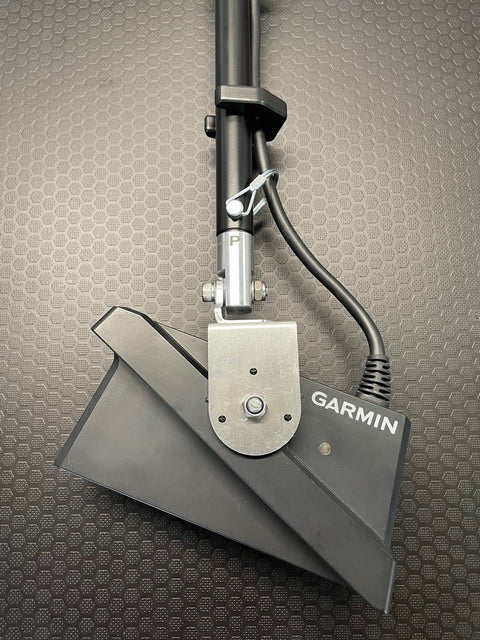

GTM- 6200/ LVS62 GARMIN TRANSDUCER MOUNT

We designed this new transducer mount with zero transducer offset. This makes the transducer directly in-line with the transducer pole. What this achieves is a higher degree of accuracy, better performance and a smaller overall profile allowing you to fit the transducer into an 10" hole in the ice.

When perspective view is required, simply grab the transducer and swing it sideways. The transducer mount comes set with the proper resistance and requires no tooling for this function. To re orient the direction of the transducer pole handle, rotate the transducer mount 90° and re pin in the "P" (perspective) position.

Our new LVS62 transducer mount is built from marine grade aluminum and utilizes stainless steel hardware for long term performance and corrosion resistance.

To install the GTM-6200 you will need to harvest the selector disk on the perspective bracket that Garmin provides with your Livescope XR. It is also important to keep and use the rubber washer Garmin provides with the transducer. This rubber washer acts as a spring allowing the selector disc segments to ride over one another when functioning between forward and down view. (Please see images above)

- Extremely compact

- Performs all view modes including perspective

- No tooling required

- Aluminum and stainless steel construction

- Quick release for fast and easy storage
