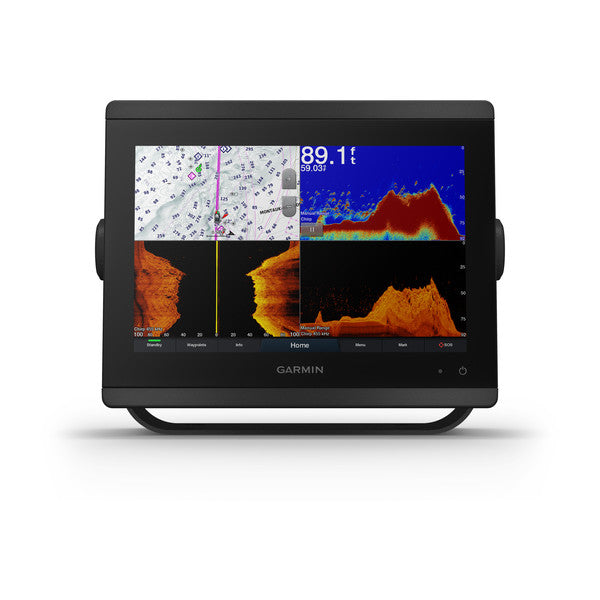

Garmin GPSMAP8610xsv 10" Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) Touchscreen and Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
Model: 010-02091-51- Features a 10" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses
- Built-in support for the full suite of Garmin sonar capabilities, including CHIRP traditional, ClearVü™ and SideVü™ scanning sonars, Ultra High-Definition scanning sonar (no black box required), the LiveScope™ System and the full-line of live sonar products (transducers sold separately)
- Adds a stunning appearance with ability to install multiple displays either flat mounted edge-to- edge to create a sleek glass helm look or mounted flush
- Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar and autopilots to instruments, cameras and multimedia
- ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor and more
- See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway
- For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many third-party devices
- Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content.
- SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring and more
- Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge
- Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more.
- Dual microSD™ card slots on back of unit for use with the ActiveCaptain® app and cartography cards"
The GPSMAP® 8610xsv chartplotter features a 10" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. It offers built-in support for our industry-leading sonar , including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars plus built-in support for Ultra High-Definition scanning (no black box required). It also supports Panoptix™ and LiveScope™ sonar products and a wide range of other transducers (sold separately). The device is preloaded with Garmin Navionics+™ coastal charts and inland mapping that feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for confidence in helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution and more. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000® networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use the OneHelm™ feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™ features provide data, displays and prerace guidance to help you gain a competitive edge. Download the ActiveCaptain® app to your compatible smartphone or tablet to manage your marine experience--from trip planning and prefishing to purchasing, downloading and updating maps. See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury® engines by using the SmartCraft® Connect gateway.
SpecificationsGeneral | |
Physical dimensions | 10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm) |
Weight | 5.2 lbs (2.4kg) |
Water rating | IPX6 and IPX7 |
Display type | touchscreen IPS display (anti-glare finish) |
Display size | 8.6" x 5.4" (21.8 cm x 13.7 cm) |
Display resolution | WUXGA; 1920 x 1200 pixels |
Power consumption | 2.7 A |
Antenna | Internal or external over NMEA 2000 |
Mounting options | Bail, flat or flush (Garmin do not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
Receiver | 10 Hz GPS/GLONASS/Galileo |
Garmin Marine Network™ ports | 2 |
Maps & Memory | |
Accepts data cards | 2 microSD cards (on back) |
Waypoints | 5,000 |
Routes | 100 (250 waypoints each) |
Track log | 50,000 points; 50 saved tracks |
pre-loaded maps | Garmin Navionics+ coastal and inland water charts for the U.S. and Canada |
Outdoor Recreation Features | |
Tide tables | Yes |
Chartplotter Features | |
Garmin Radar compatible | Yes |
Garmin Sonar compatible | Yes |
Garmin SmartMode compatible (customizable monitor presets) | Yes |
Supports AIS (tracks target ships position) | Yes |
Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
Supports FUSION-Link™ compatible radios | Yes |
GSD™ Black Box sonar support | Yes |
GCV™ Black Box sonar support | Yes |
ActiveCaptain compatible | Yes |
Garmin Helm compatible | Yes |
GRID™ (Garmin Remote Input Device) compatible | Yes |
Wireless remote compatible | Yes |
Sonar Features & Specifications | |
Dual-frequency (50/200 kHz) sonar capable | Yes |
Dual-beam (77/200 kHz) sonar capable | Yes |
Frequencies supported Regular | Traditional: 50/200, 77/200, 83/200 Single Channel CHIRP: 40-250 Dual Channel CHIRP: 40-250 SideVü/ClearVü: CHIRP 260/455/800 (dependent on transducer) |
Frequencies supported Ultra High Definition | Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz (dependent on transducer) |
Transmit power | 1 kW traditional; 1 kW CHIRP |
CHIRP sonar technology | Yes (Built-in) |
ClearVü | Yes |
SideVü | Yes |
Maximum depth | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
Connections | |
NMEA 2000® compatible | Yes |
Transducer pin numbers | 1 — LVS sonar, 1 — 12 pin scanning sonar, 1- 8 pin sonar |
NMEA 0183 input ports | 1 differential |
NMEA 0183 output ports | 1 differential |
Video input ports | 1 - BNC composite 1 - HDMI (HDCP compliant) |
Video output ports | 1 HDMI |
Wireless connectivity | Yes |
What's in the Box:
- GPSMAP 8610xsv Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
- Power cable
- NMEA 2000® drop cable
- NMEA 2000 T-connector
- Bail mount with knobs
- Flush mount kit
- Sun cover
- Trim piece snap covers
- Documentation
